Instructions for Updating the Firmware and Database on the Uniden BCD436HP

First you will want to download the latest version of the Sentinel software from the HomePatrol website so that you can be sure you are getting the latest firmware and database updates. That can be downloaded from here:

http://info.uniden.com/twiki/bin/view/UnidenMan4/BCD436HP

Once you have the software installed, you will want to update the firmware by:

1. Connecting the scanner to the computer (USB Cable Detected Select USB mode will display)

2. Press “E” to select “Mass Storage”.

3. Select the UPDATE tab on the Sentinel software toolbar and click UPDATE FIRMWARE

4. Click OK on the next window that comes up

5. Once the update is completed, disconnect the scanner from the computer to allow the firmware to apply itself to the scanner.

You will see a status bar in the screen of the scanner and then the scanner will start up once more on its own.

6. Reconnect to the computer

7. Select the UPDATE tab on the Sentinel toolbar once more and click UPDATE MASTER HPDB

8. When the update is complete, select the SCANNER tab on the toolbar

9. Click on the WRITE TO SCANNER and then OK on the next window

When the update is complete, you can disconnect your radio from the computer so you can set it up once more for your area.

BCD436HP “How-To” Videos

Installing Sentinel Software

Uniden Upman shows how to Install the Sentinel Software.

YouTube video

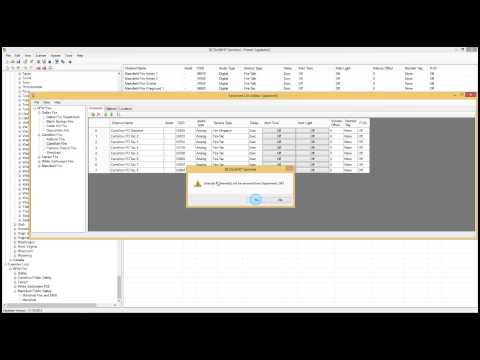

BCD436HP Favorites List

Uniden Upman introduces Creating a Custom Favorites List with Sentinel Software.

YouTube video

BCD436HP Priority Channels

How to set Priority Channels.

YouTube video

Creating Favorites List

Another video on Creating A Favorites List.

YouTube video

Assigning Quick Keys

Assigning Quick Keys to System Sites using the Sentinel software.

YouTube video

Understanding Service Types

Explains how Service Types work.

YouTube video
